INCH-POUND

MS3216D

25 October 2011 SUPERSEDING MS3216C

23 February 2004

DETAIL SPECIFICATION SHEET

RING, RETAINING, EXTERNAL, PRONG-LOCK

(REDUCED SECTION TYPE)

This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and procurement specification MIL-R-21248.

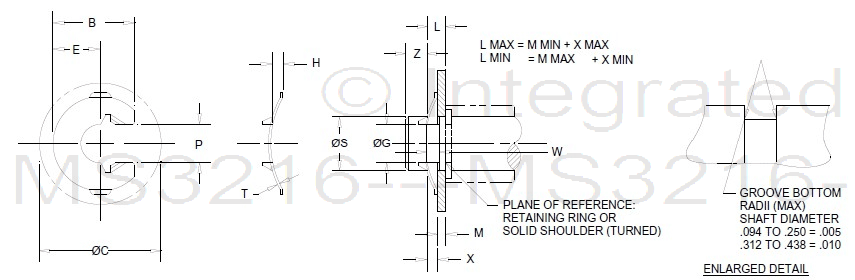

Table I. Dimensions.

						B		E	H	T 1/				W	∅C
∅Shaft			∅P			B		E	H	T 1/			∅G	W	Clear-
(Ref)			Free		Overall				Bow	Thickness				Width	ance
			Gap		Height				Height

Inch	mm	Basic		Tol	Basic		Tol	(Ref)	±.010	Basic	Tol	Basic	Tol	+.005	Inch
														-.000
.094	2.4	.063			.307			.166	.050	.010		.061	± .001	.035	.370
													.003 FIM 2/
.125	3.2	.086		± .004	.307			.166	.050	.010	± .001	.082	± .0015	.035	.370
													.003 FIM 2/
.156	4.0	.108			.330		± .010	.184	.055	.010		.104	± .002	.040	.410
.188	4.8	.130			.390		± .010	.213	.060	.015		.124	± .002	.045	.480
.250	6.3	.172			.500			.280	.070	.015		.165	.004 FIM 2/	.055	.620
.250	6.3	.172		± .005	.500			.280	.070	.015	± .002	.165		.055	.620
.312	7.9	.234			.620			.360	.095	.015		.228		.080	.790
													± .003

.375	9.5	.280			.740			.427	.130	.020		.270		.095	.940
.438	11.1	.340			.820			.475	.130	.020		.327	.005 FIM 2/	.105	1.050
				± .010			± .020							.105	1.050
				± .010			± .020

1/ T = Thickness “T” applies to unplated rings. For corrosion resistant steel and plated rings, +.002 should be added to the maximum tolerance, i.e., ±.002 should be +.004/-.002.

2/ FIM = (Full Indicator Movement) is the maximum allowable deviation of concentricity between the groove and the shaft.

AMSC N/A

FSC 5325
